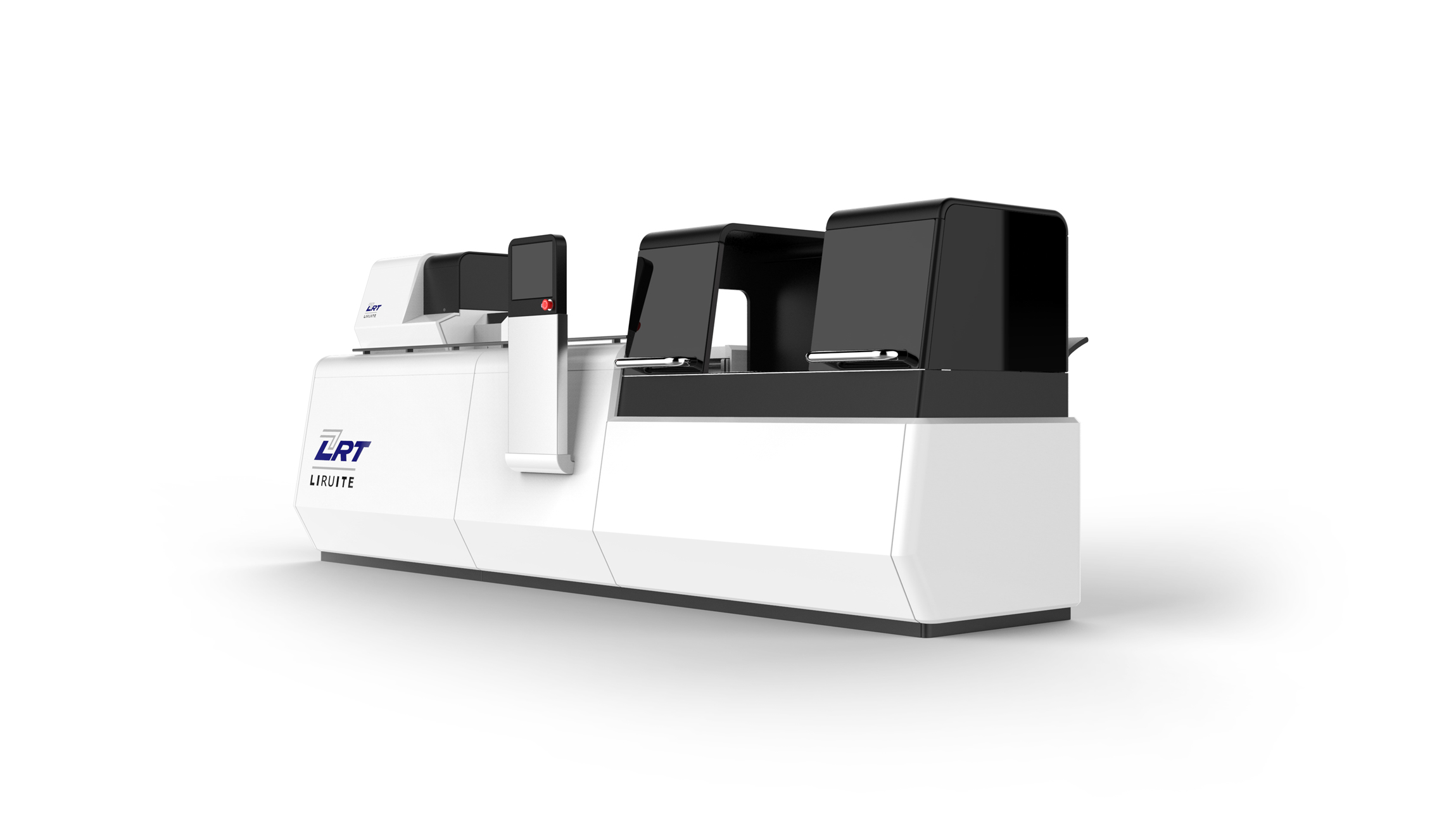

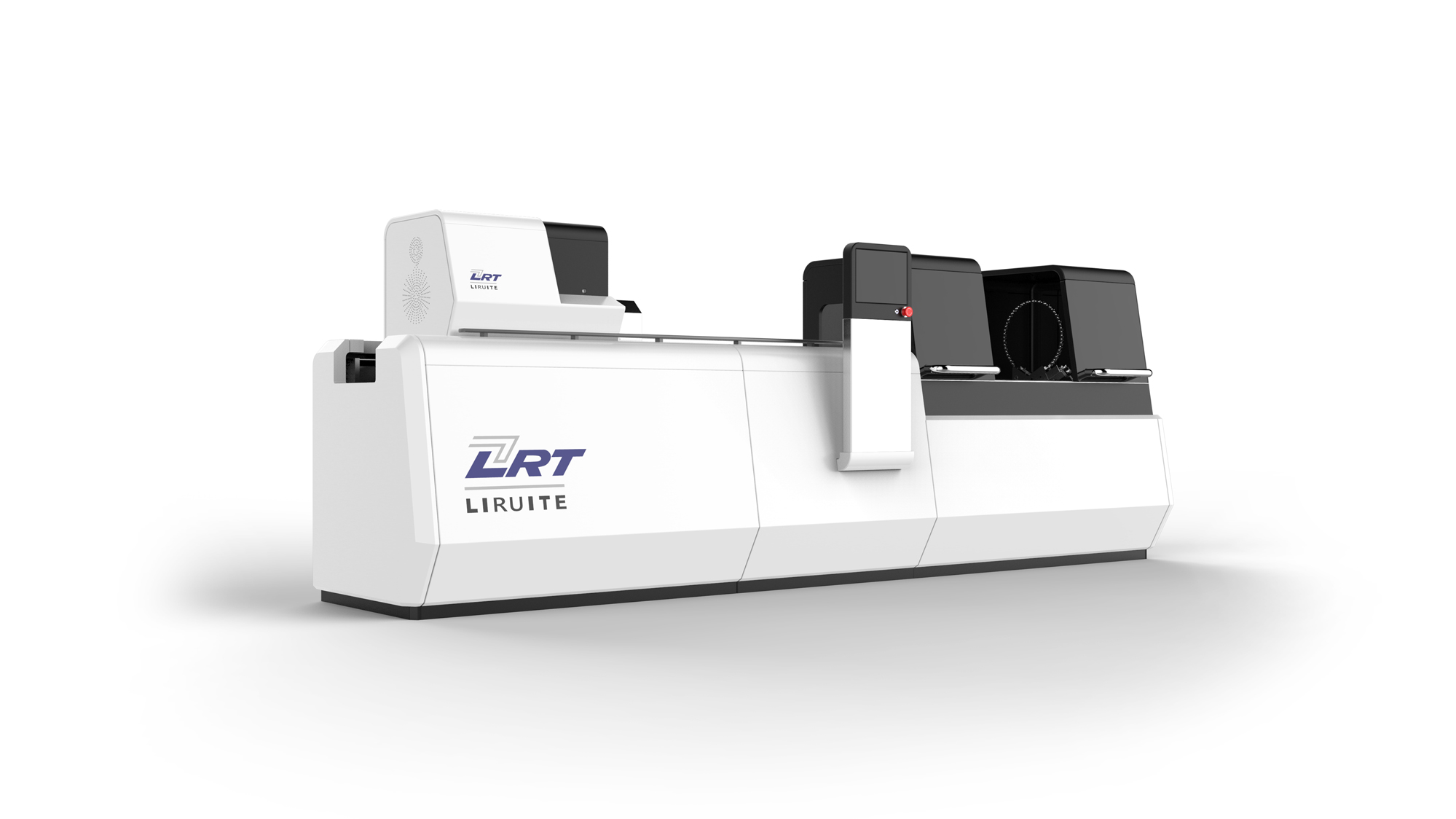

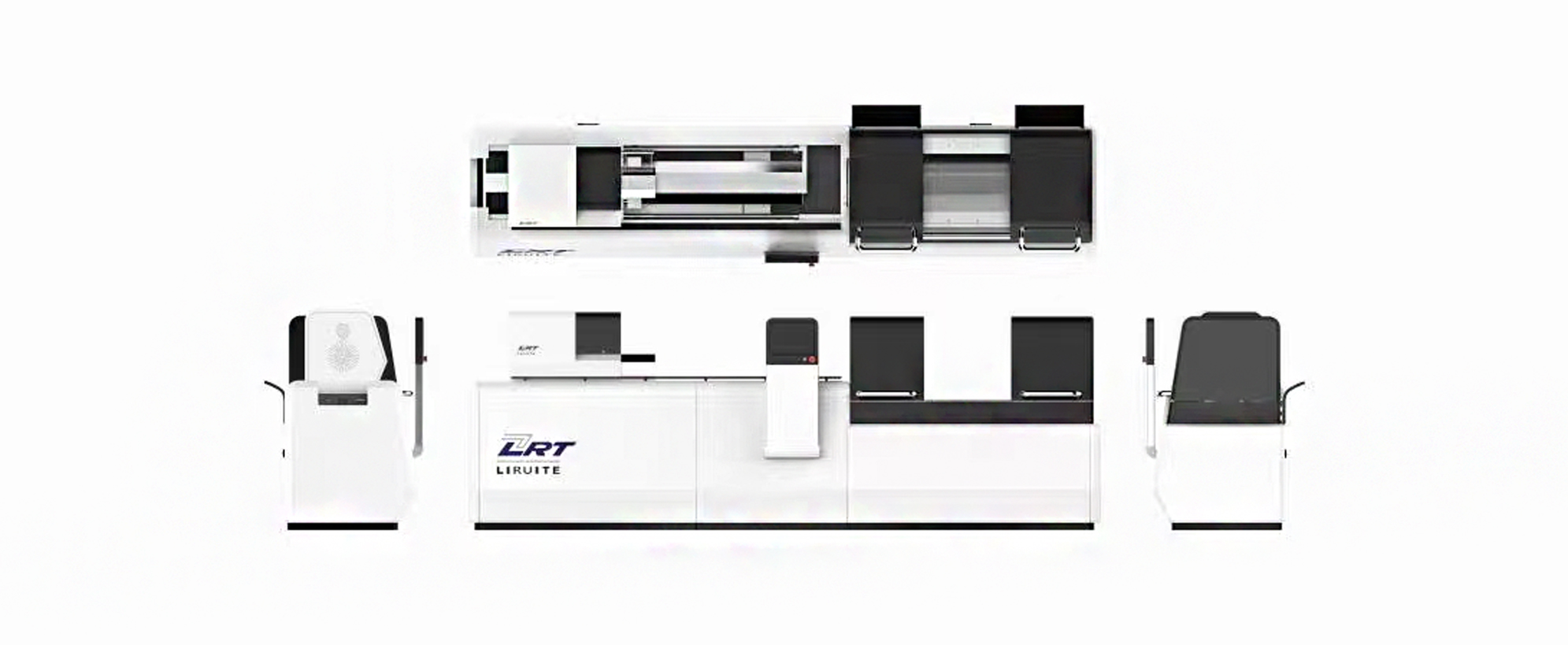

SWH series high-precision deep hole honing machine

Function Introduction
1. Automatic hole correction: can automatically correct hole defects, such as horn holes and ellipses, to improve geometric accuracy
2. Equipped with honing processing database: A complete honing database reduces the probability of operator misoperation. The operator only needs to input the aperture and length, and the system automatically generates processing parameters. It can also be manually adjusted in real-time based on the recommended processing parameters.
3. Unique honing feed system: servo motor and a honing head with one tooth difference planetary reduction structure, combined with a dedicated control algorithm, reduce the loss of oilstone by more than 30% during the honing process, while improving the honing efficiency by 50%. The honing feed resolution reaches 0.0001 mm.
4. Special control system: The unique industrial control computer includes an upper computer PC, equipped with a Windows system, a 15 inch touch screen, and a lower computer with a multi axis motion control card. Coupled with specially developed software, it can achieve real-time monitoring of the honing process, real-time modification of processing parameters, and automatic control of honing pressure.
5. Other functions: fixed size honing, positioning honing, automatic stroke repair, overload protection.
