Human-computer interaction interface

Numerical Control

Real time display of the honing pressure torque value at the position of the honing head, reflecting the shape error of the inner wall of the workpiece in a real and intuitive manner. Each reciprocating cycle can automatically calculate the highest point of the inner wall of the workpiece and display it in the curve, making it convenient for short stroke repair of shape errors.

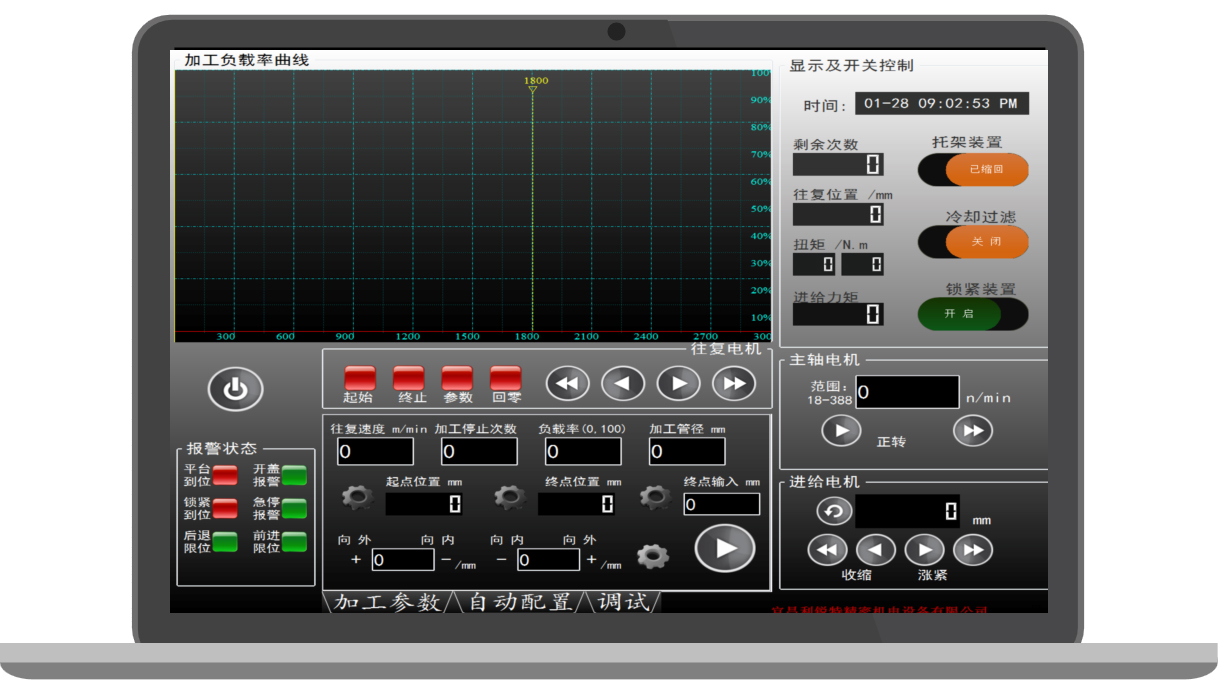

Human machine interaction (17 inch touch screen)


Processing load rate curve
The X-axis represents the real-time position of the reciprocating motor, the Y-axis represents the load rate of the feed motor, and the position of the point with the highest load rate of the motor is displayed in real-time for each cycle of reciprocating motion. The two ends of the X-axis are the starting and ending points of the set reciprocating stroke, respectively. The load rate range of the Y-axis is 0-100%, and the higher the load rate, the higher the grinding efficiency
Status display and switch control
Real time dynamic data display; Redundant design of torque feedback signals for spindle servo motors and analog torque signals loaded on high-precision torque sensors; The virtual sliding switch is linked with the system and can also be manually intervened and forced to operate
system parameter setting
End point "direct input"; Plus Minus Stroke
Short stroke repair; Positioning and repair; Fixed size repair
Timely reversing; Parameter shutdown save
